Description

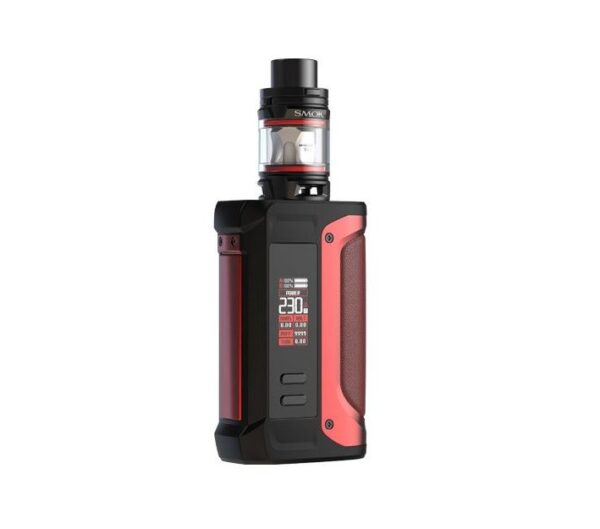

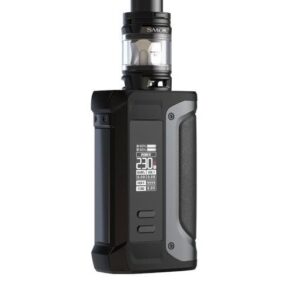

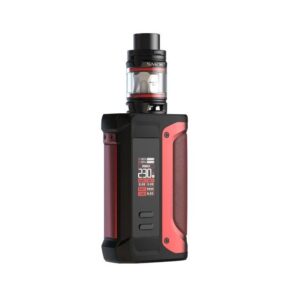

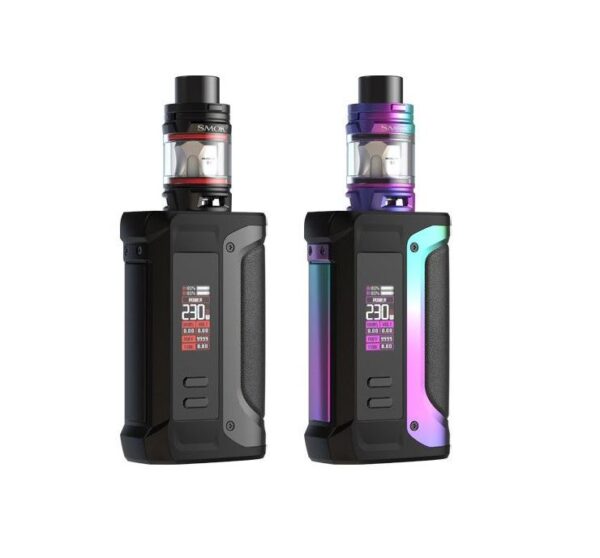

Every part of the SMOK ARCFOX KIT is precisely crafted, to provide optimum performance and efficiency. Powered by dual external 18650 batteries (Not included), with a maximum output of 230W, this makes for a powerful and reliable sub ohm device. The variable wattage option allows you to tailor to your desired vapor production level and means you can also pair the Arcfox mod a wide range of other tanks and rebuildable.

This kit comes complete with TFV Mini V2 tank with top filling mechanism.  Two coil options are included, Mini V2 S1 0.15 Ohm Single Meshed Coil & Mini V2 A2 0.2 Ohm Dual Coil, and the Arcfox is also compatible with all TFV Mini V2 Coils.

The ArcFox includes a user-friendly embedded 0.90” colour screen which gives you visibility of important data including battery life, wattage and mode.  This device is also dustproof, shockproof, waterproof and can withstand water immersion up to 1m for 30 minutes!

BOX CONTENTS

• Smok Arcfox 230W Vape Device
• TFV Mini V2 2ml Tank
• Mini V2 S1 0.15 Ohm Single Meshed Coil
• Mini V2 A2 0.2 Ohm Dual Coil
• USB-C Charging Cable
• User Manual

SAFETY FEATURES

• 8 second cut off
• Intelligent atomiser recognition
• Reverse battery connection protection
• Battery over-discharge protection
• Reverse battery charge protection
• Power self-adaptive control
• Overheating protection
• Short circuit protection
• Low battery warning
• Puff monitoring system

Arcfox Mod

• Dimensions: 88.25 x 55.6 x 30mm
• Weight: 145g
• Output: 5 – 230W
• Standby Current: <150uA
• Input Voltage: 6.4 – 8.4V
• Output Voltage: 0.5 – 8.2V
• Charging Voltage: 5 ± 0.2V
• Charging Current: 2.0A Max
• Temperature: 100 – 315°C

Resistance Range

• VW Mode: 0.1 – 2.5Ω
• TC Mode: 0.05 – 2.0Ω
• TFV Mini V2 Tank
• Capacity: 2ml
• Material: Stainless Steel
• Weight: 65g
• Thread: 510
